IV-3 tubes
IV-3 tubes
IV-3 VFD indicators set
IV-3 nixie tubes
IV-3 Reflector Valves
IV3 VFD vintage glow tubes
IV-3 ИВ-3 tube
IV-3 vfd vacuum tubes set for DIY clock
VFD IV-3 indicator tube
Sale!

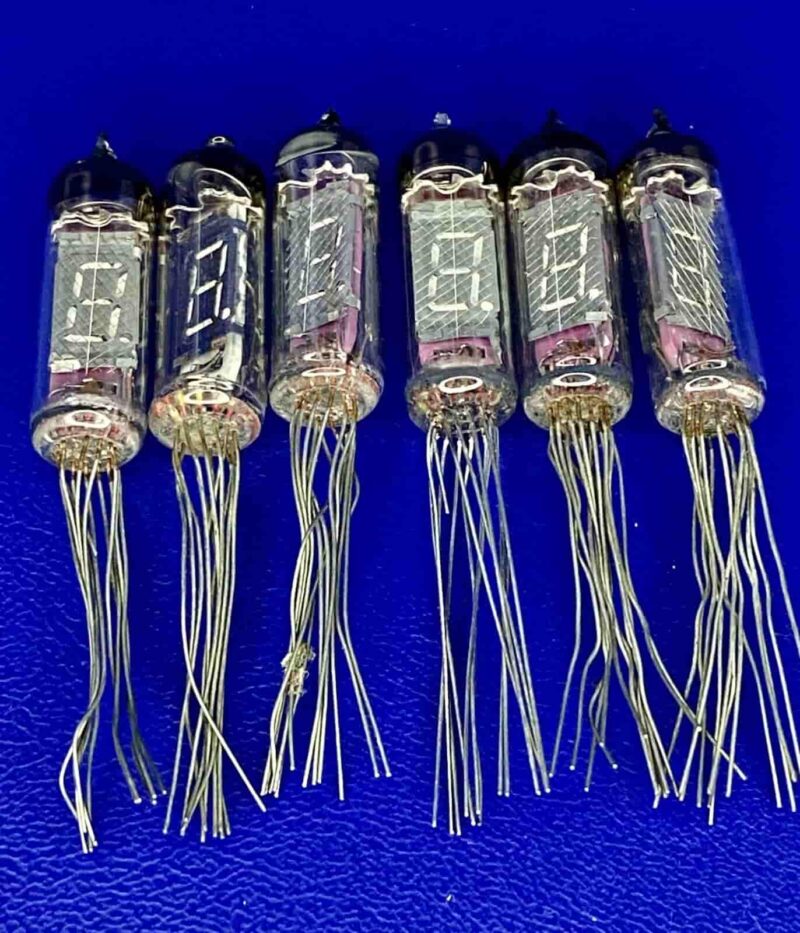

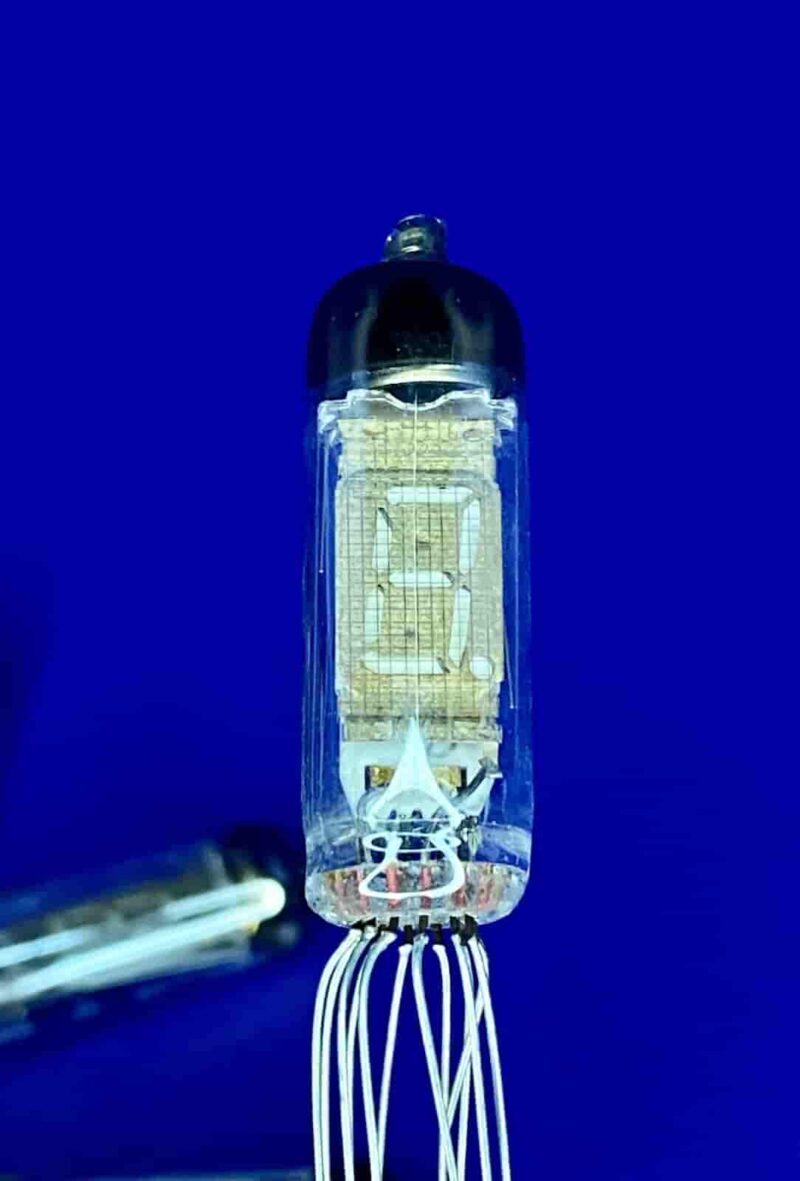

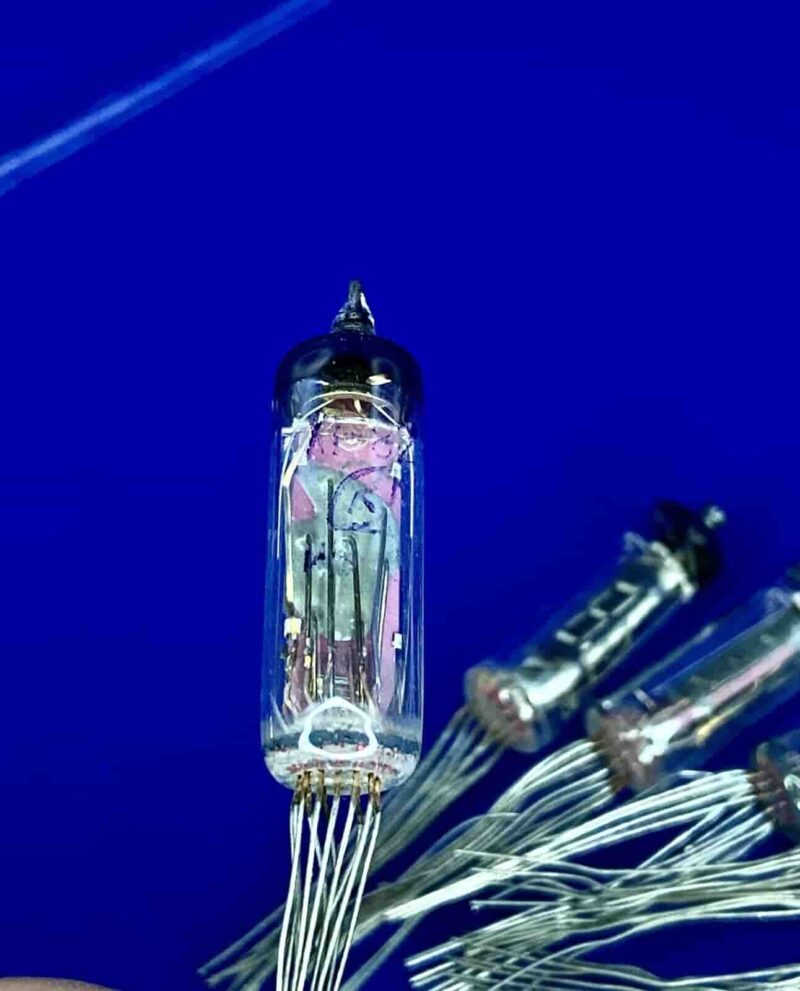

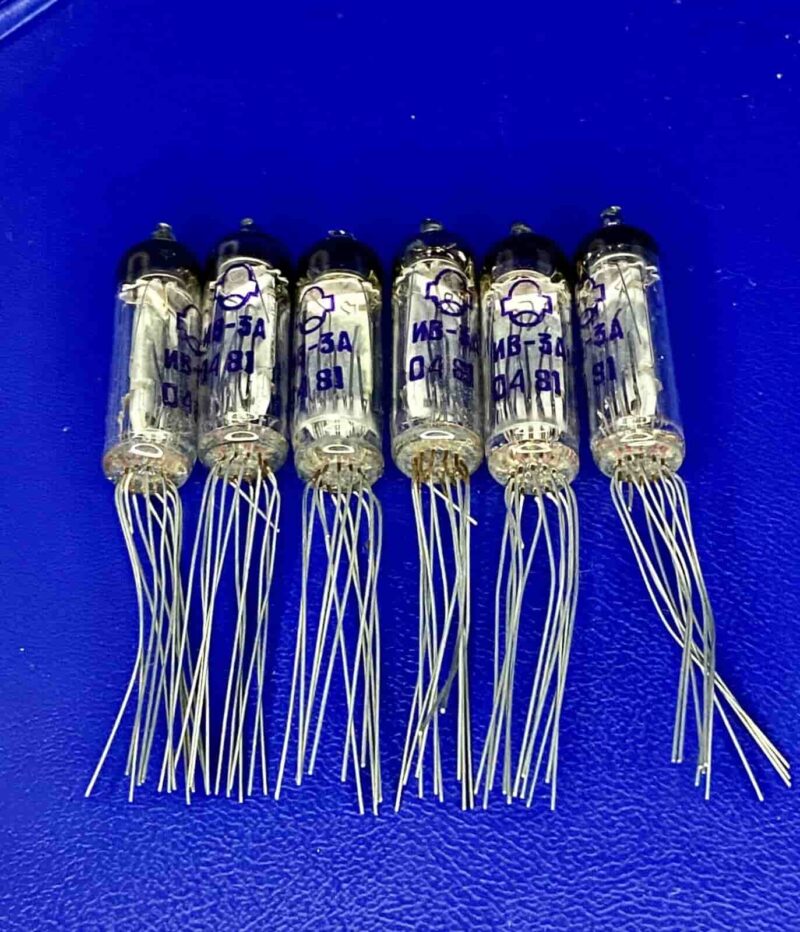

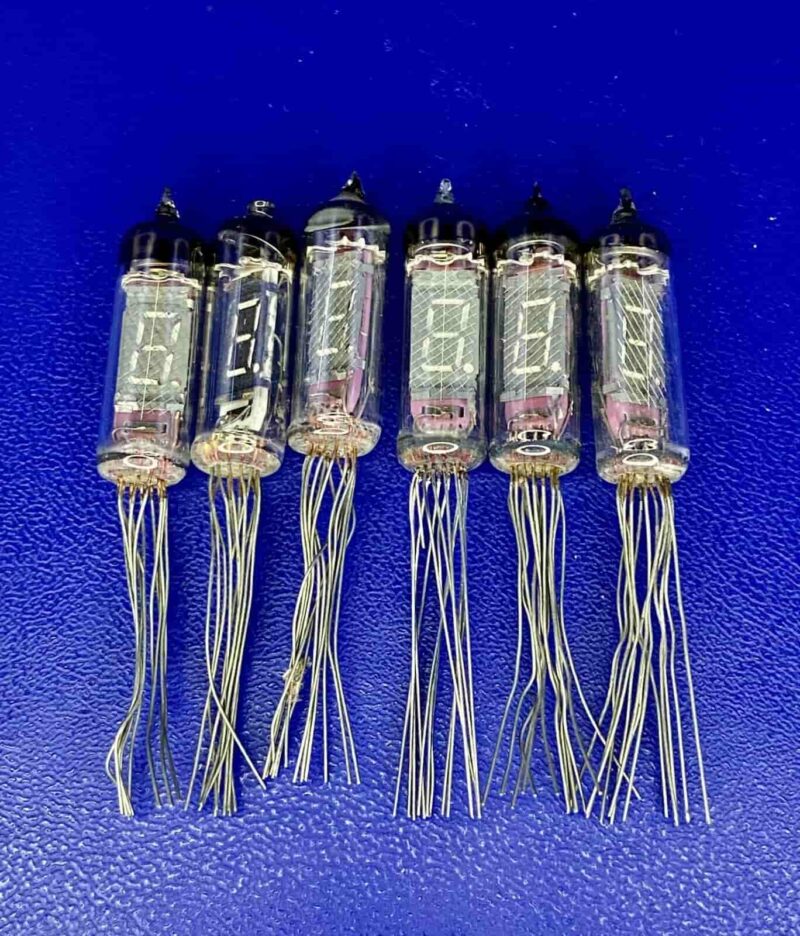

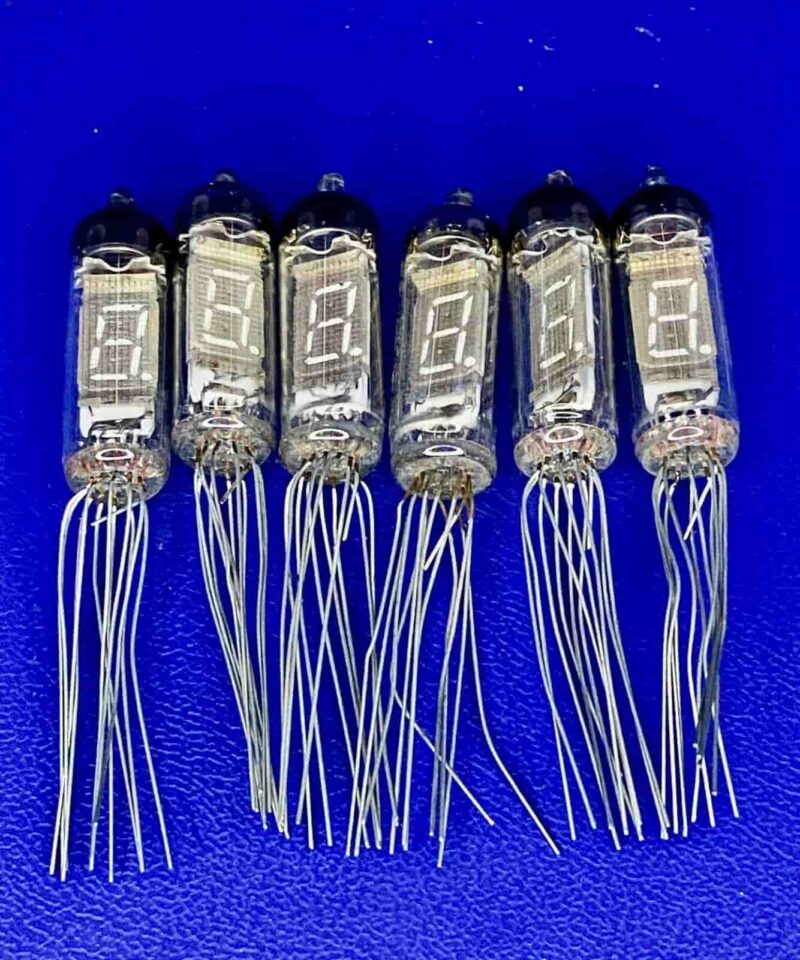

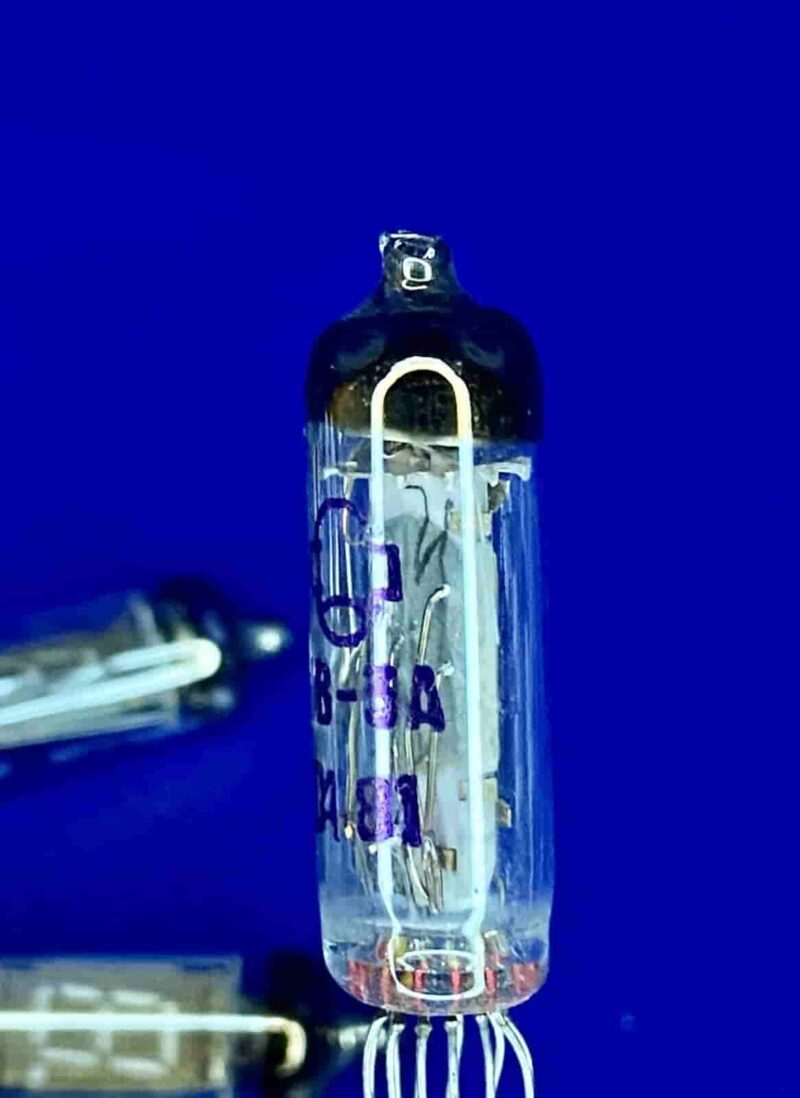

IV-3 VFD Tubes Set of 6pcs

Original price was: $25.00.Current price is: $19.90.

About IV-3 VFD tubes:

Single-digit vacuum luminescent indicator for displaying information in the form of numbers, letters and dots.

The design is glass, subminiature. The indication is made through the lateral surface of the cylinder.

The size of the familiarity is 5.9 × 8.6 mm. The image is formed from luminous segment anodes.

The glow color is green. Mass 7 g

- +
Category:

IV-3 VFD Datasheet:

  • Brightness                             (250 – 500) cd / m ²
  • Filament voltage                   (0.7 – 1) V
  • Filament current                   (45 – 55) mA
  • Anode voltage                      (20 – 30) V
  • Grid voltage                          (20 – 30) V
  • Anode segments current     < 0.3 mA
  • Grid current                           <3 mA
  • Operating time                     > 3 000 hours
  • Size of the tube                    (35 x 10.8) mm, (1,38 x 0,43) in
  • Character height                  5.9 mm (0,23 in)
  • Character width                    8.6 mm (0,34 in)
  • Weight                                    7 g.
