Original price was: $25.00.$19.90Current price is: $19.90.

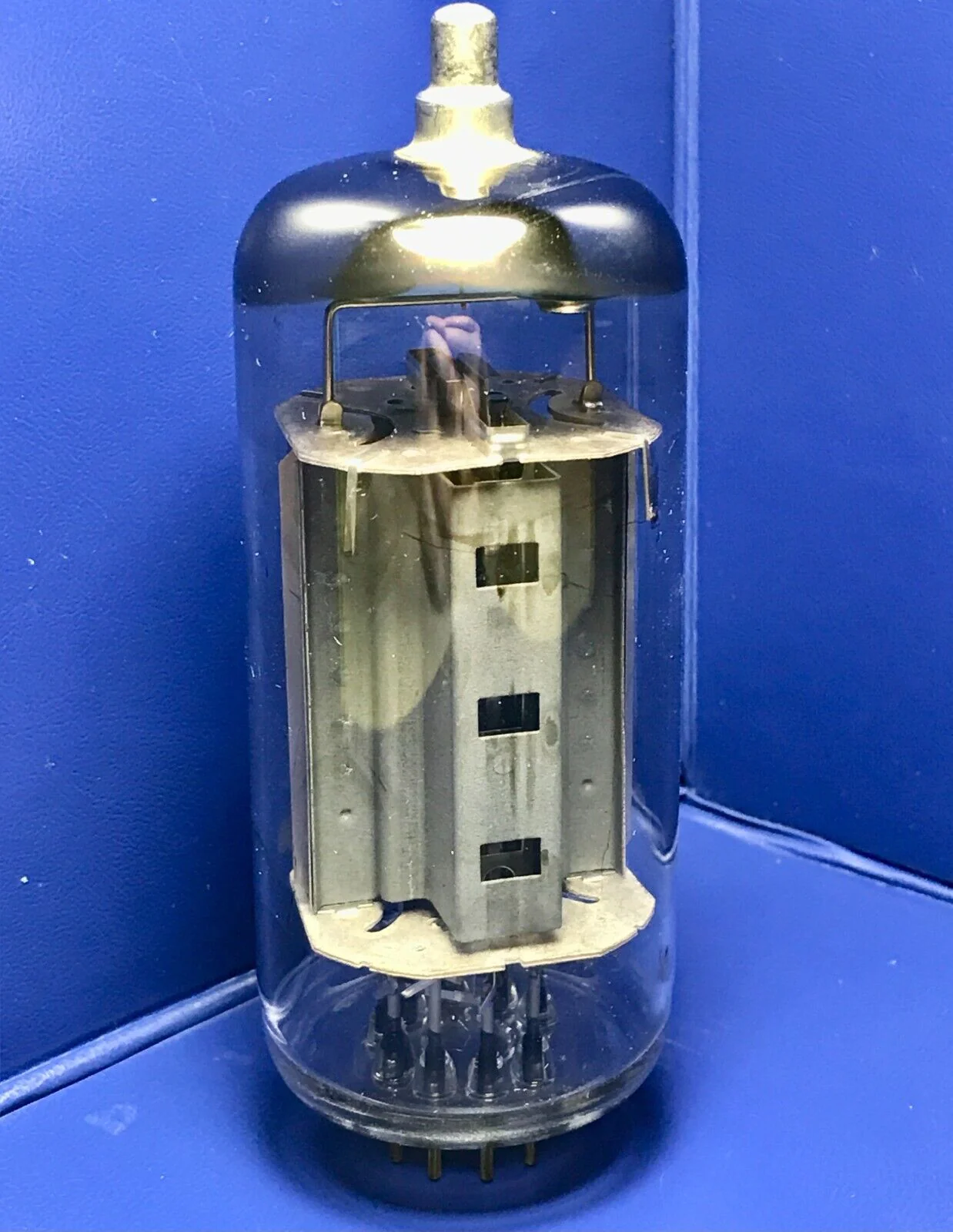

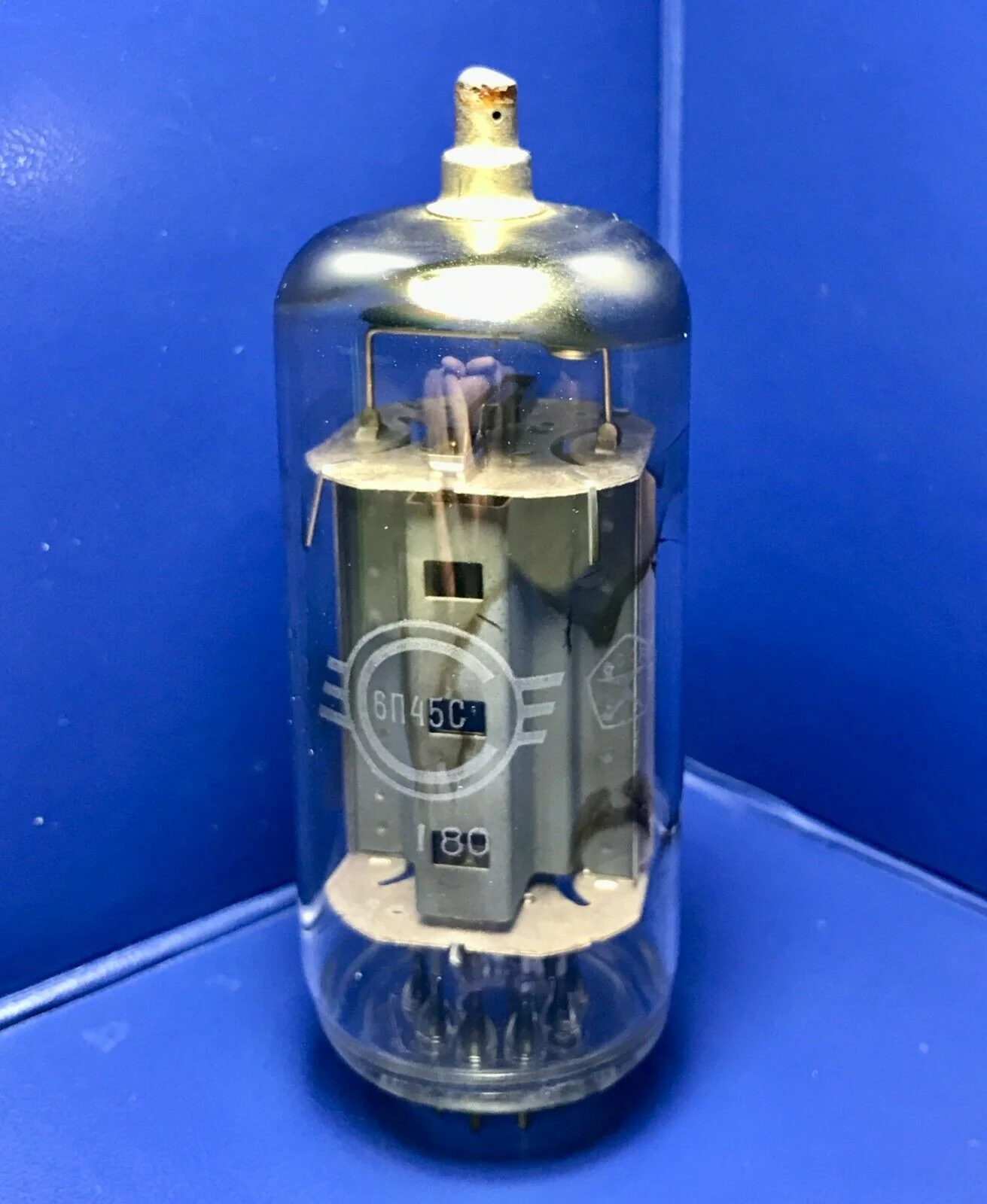

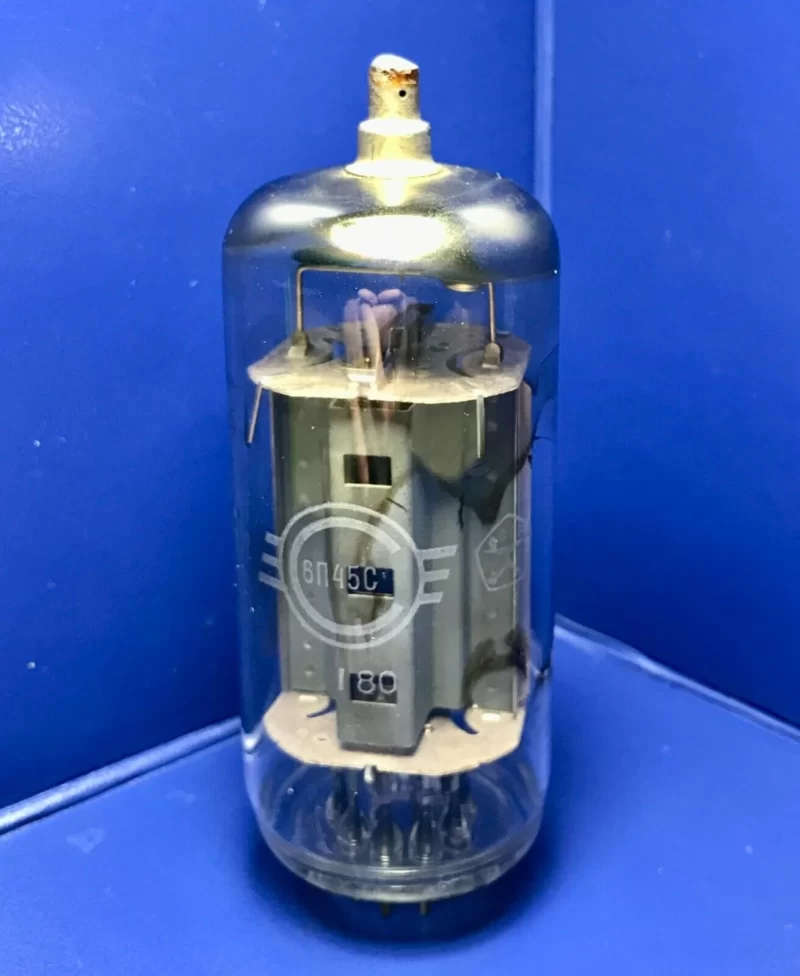

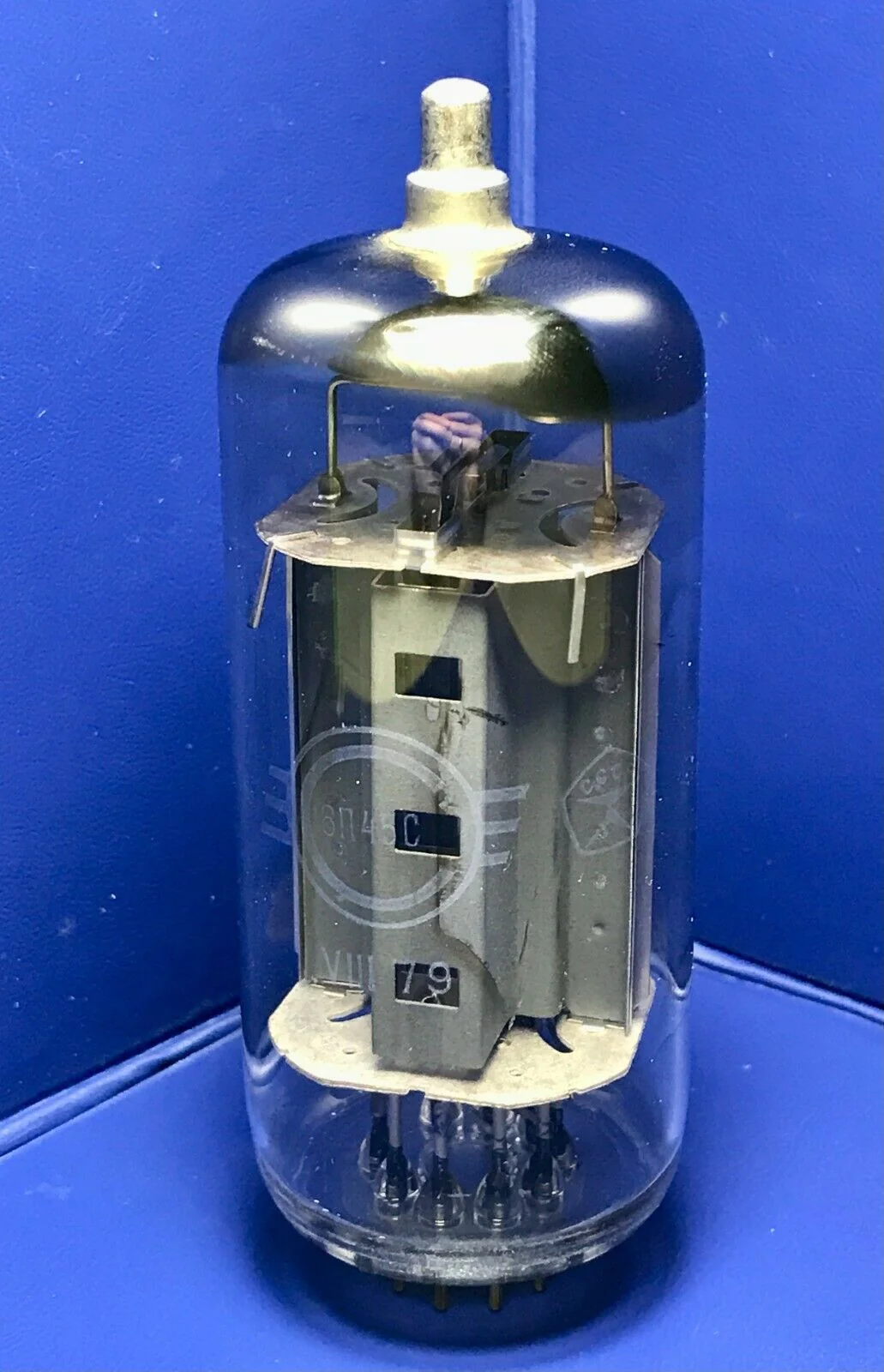

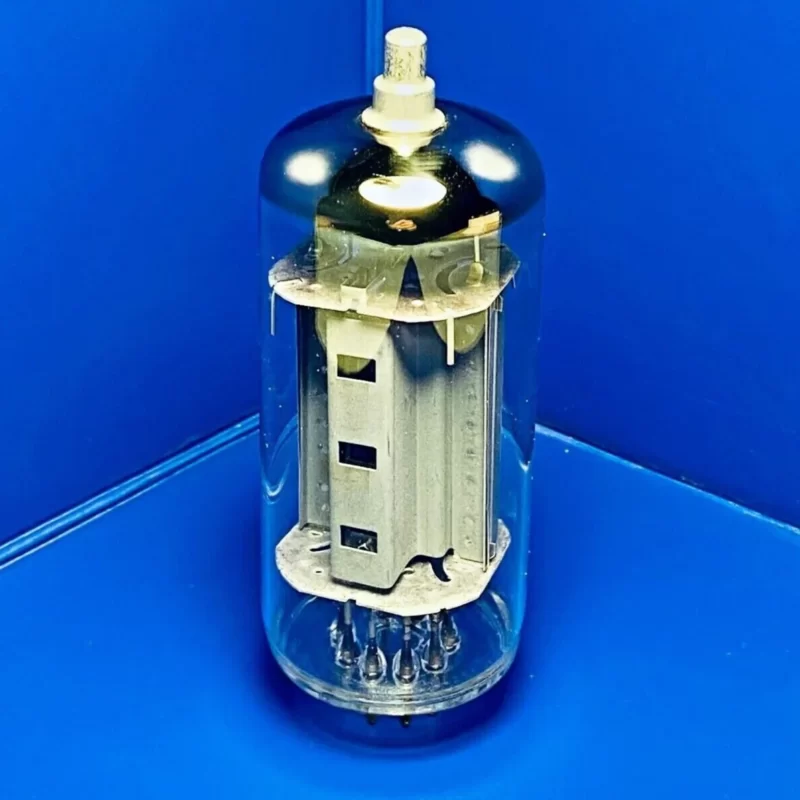

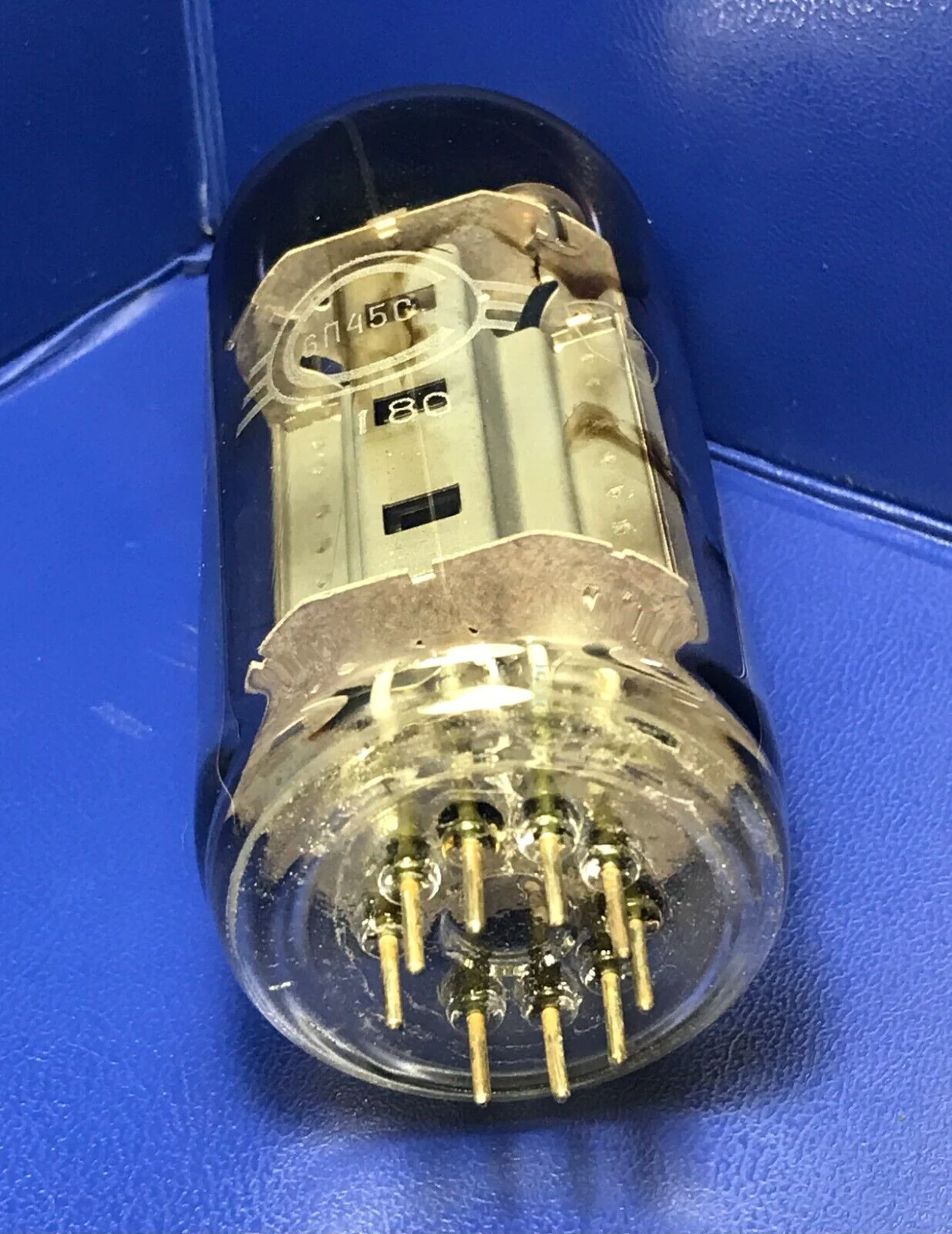

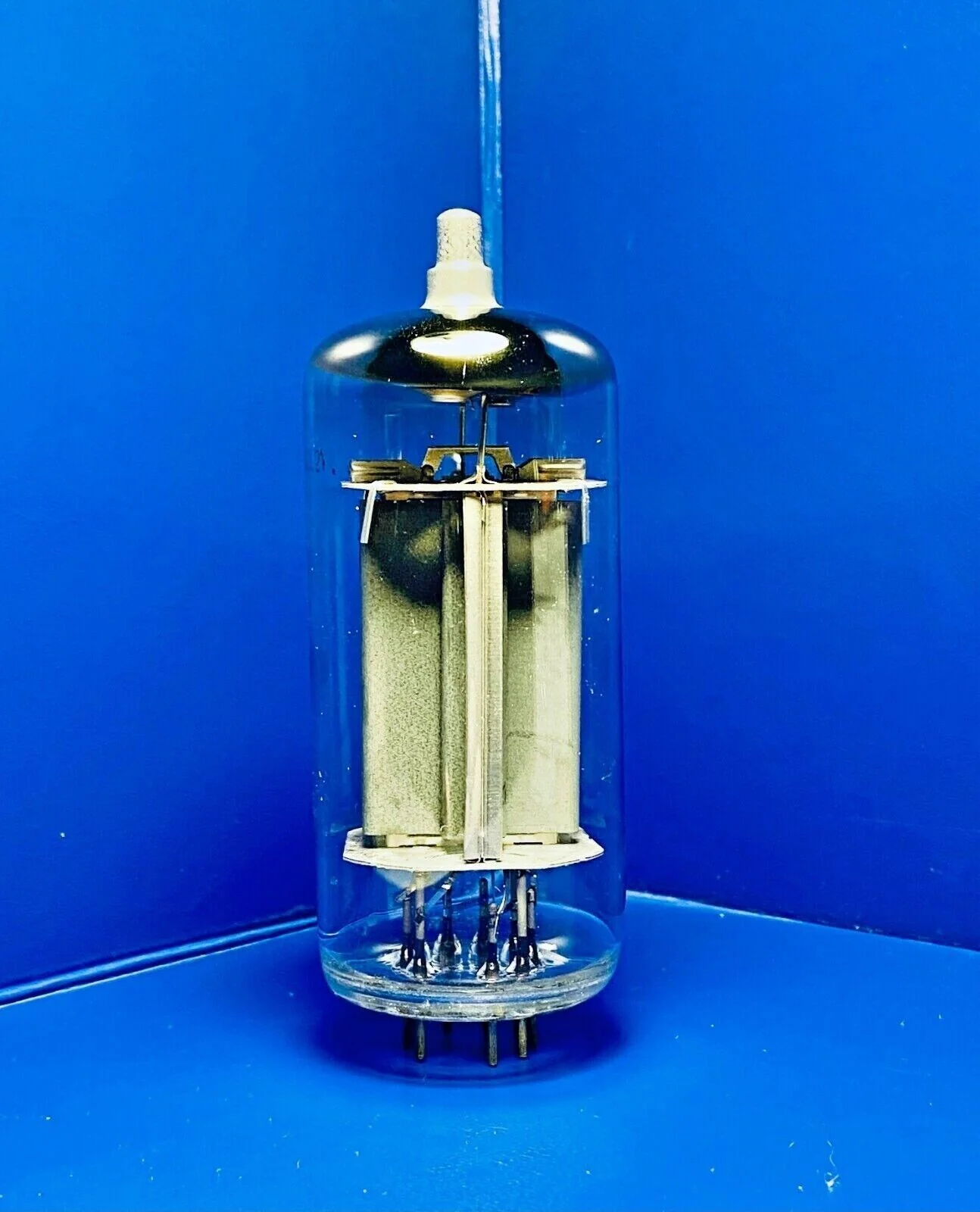

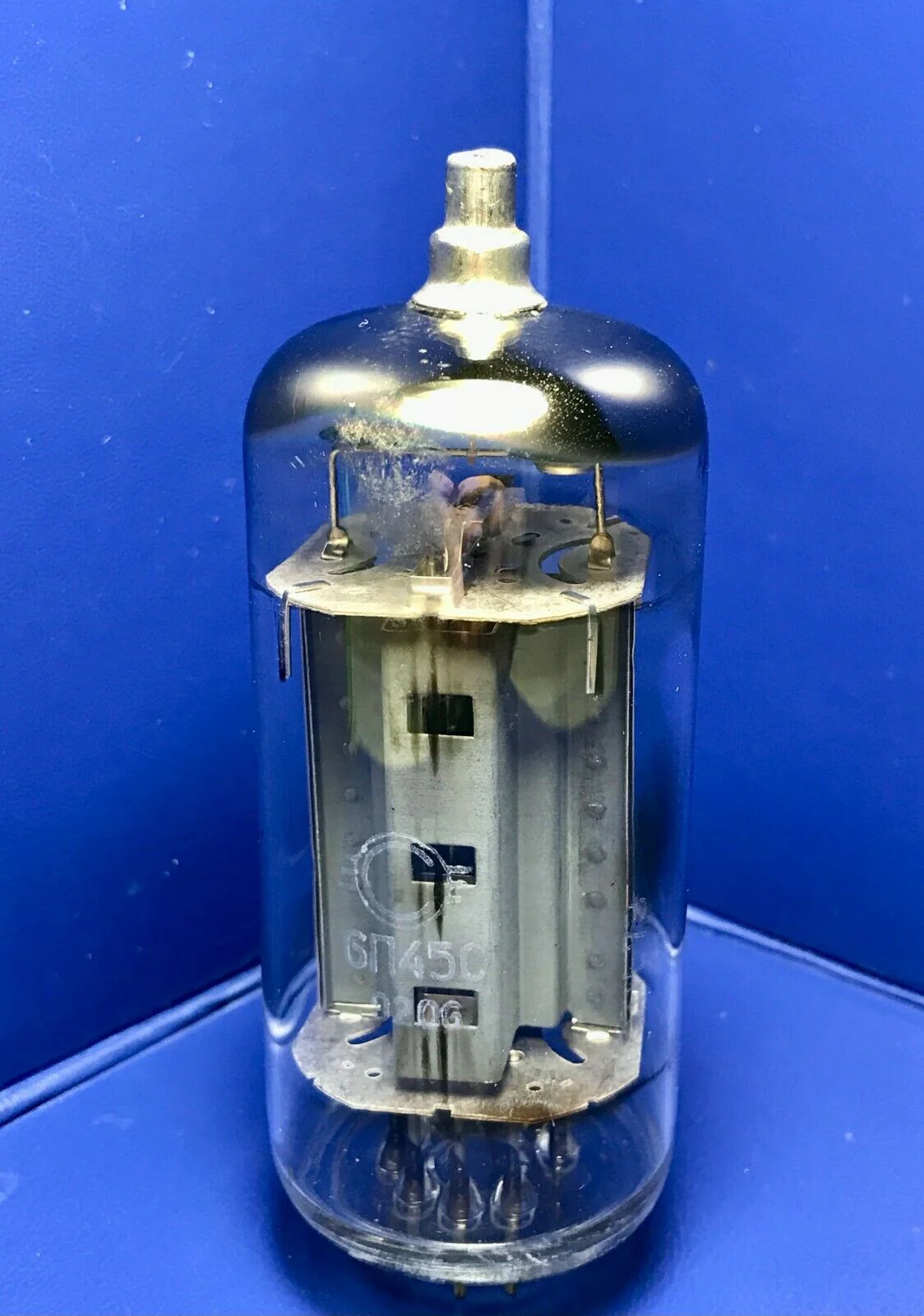

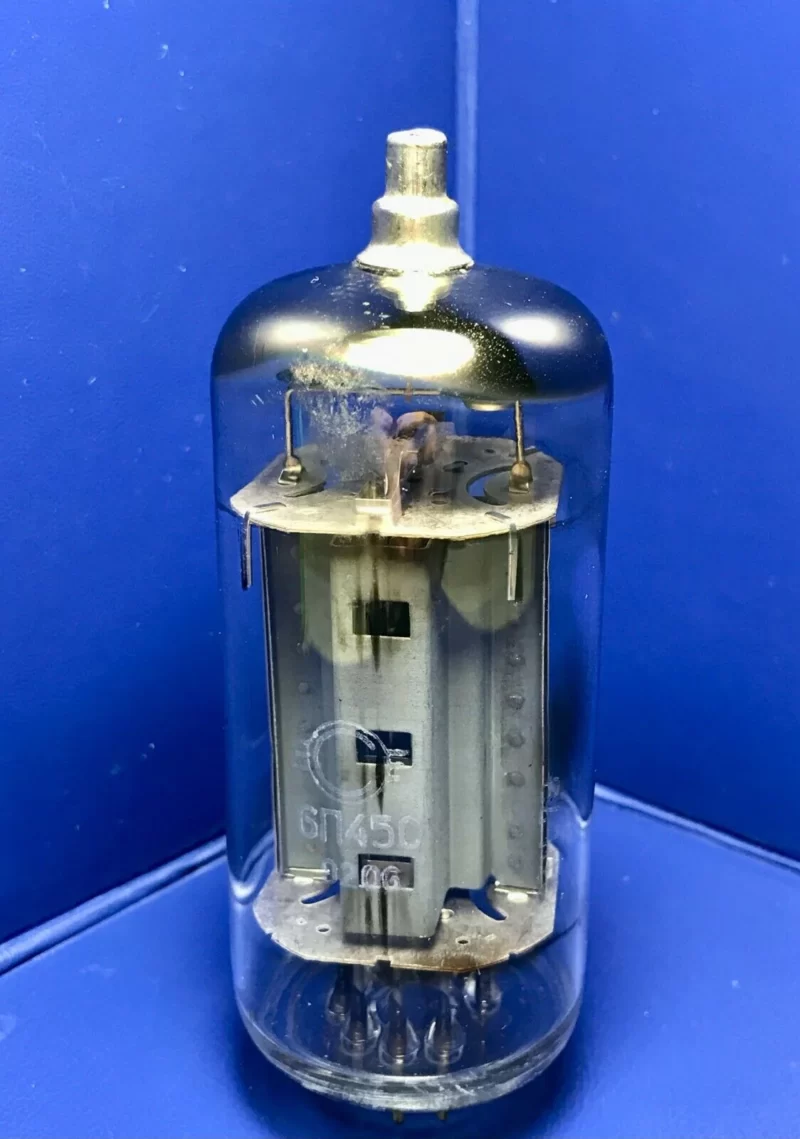

Four-electrode vacuum electronic tube (output beam tetrode ). Used primarily in audio amplifiers.
The 6P45S tube is a direct analogue of the EL509 / 6KG6 tubes.
Read more about it in our article
| Name | 6P45S |
| Type |
Output beam tetrode
|
| Application |
Application in output stages of TV scan modules
|
| Cathode type |
oxide,indirect heating
|
| Envelope | glass |
| Mass,g | 140 |
| Filament voltage,V | 6,3 |
| Filament current,A | 2,3-2,7 |
| Anode voltage,V | 50 |
| Anode current,A | 0,8 in pulse |
| Anode power,W | 35 |
| Grid1 voltage,V | minus 10 |
| Grid2 voltage,V | 175 |
| Reverse grid current,uA | 2 |
